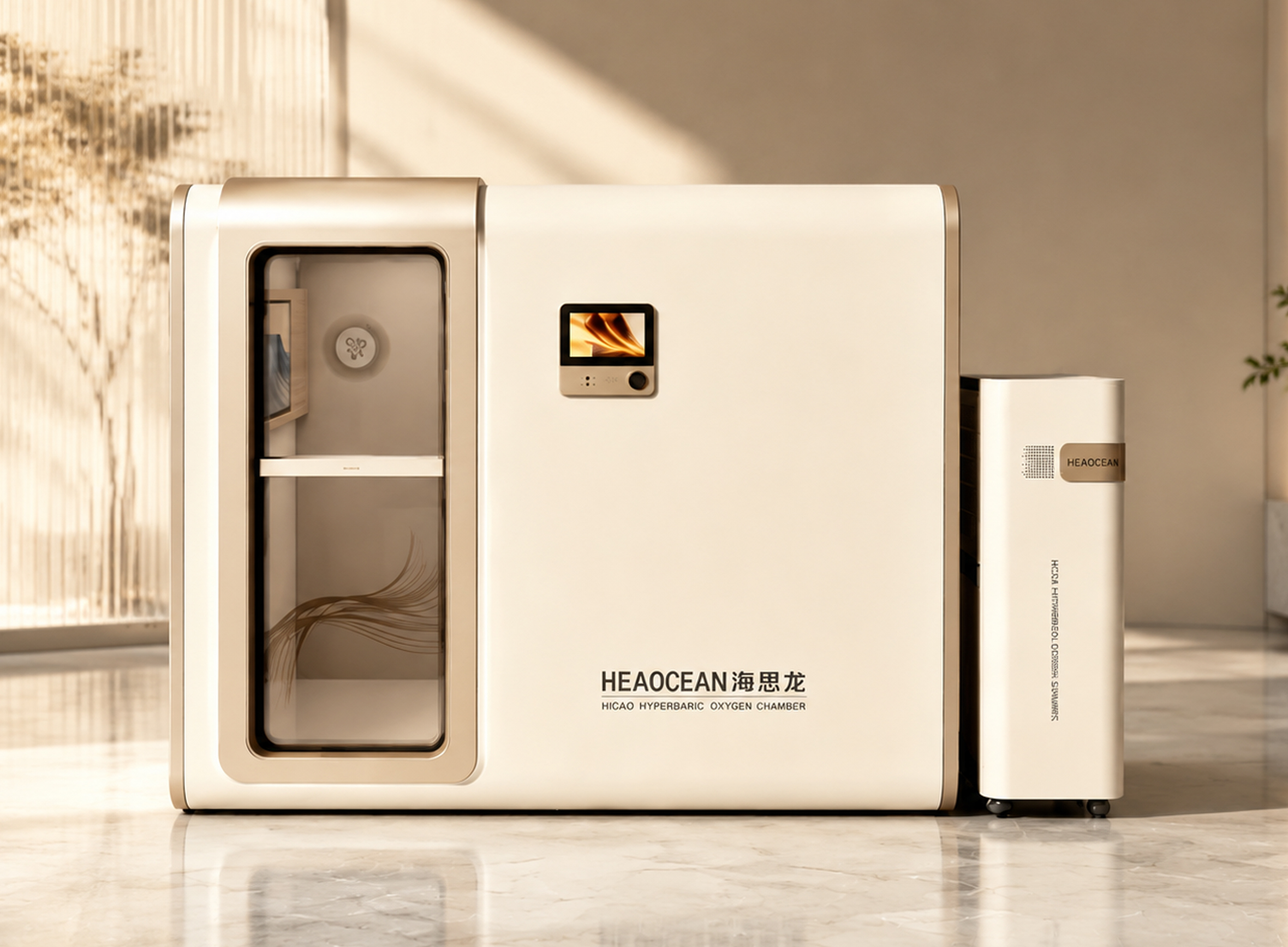

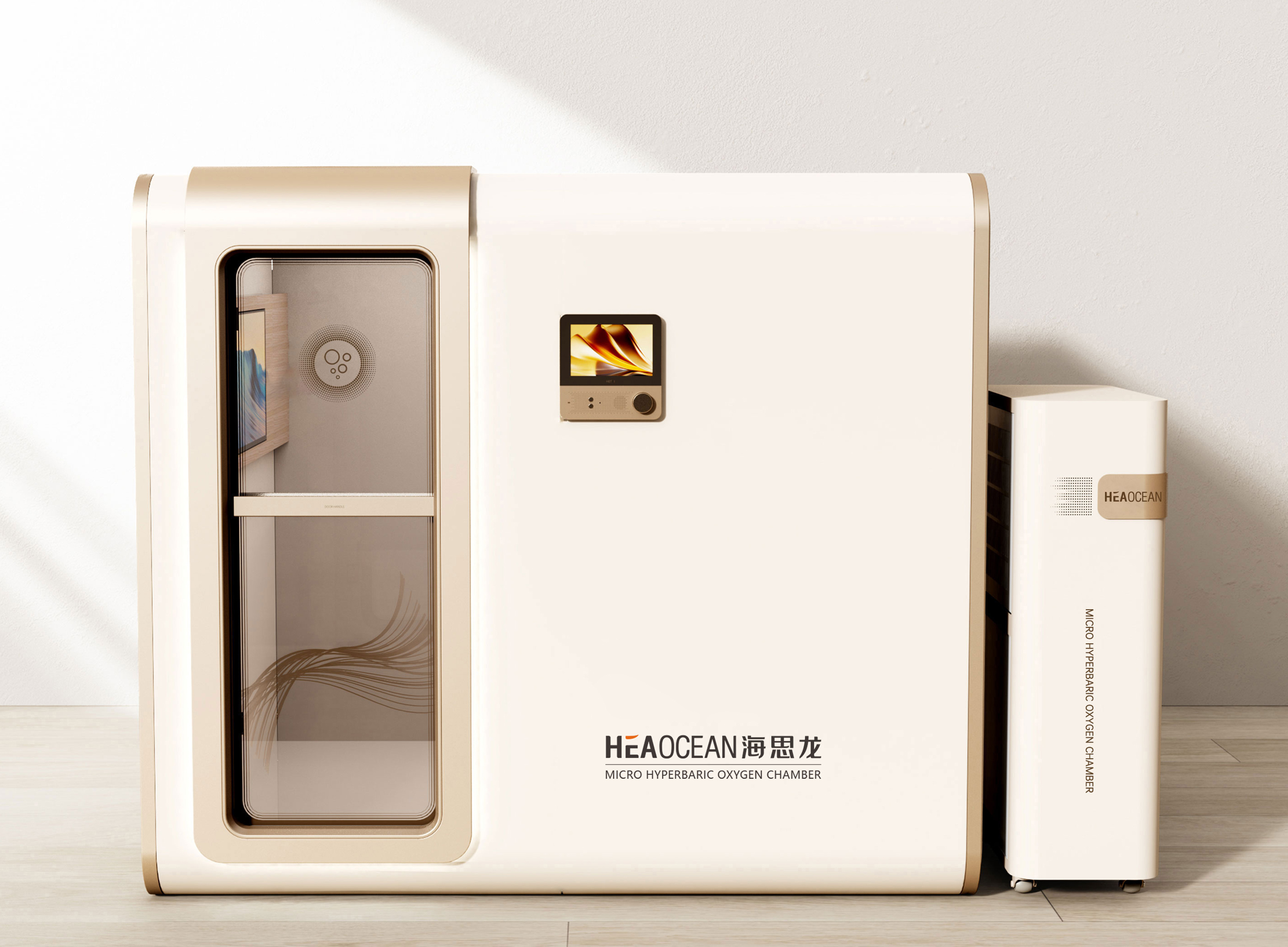

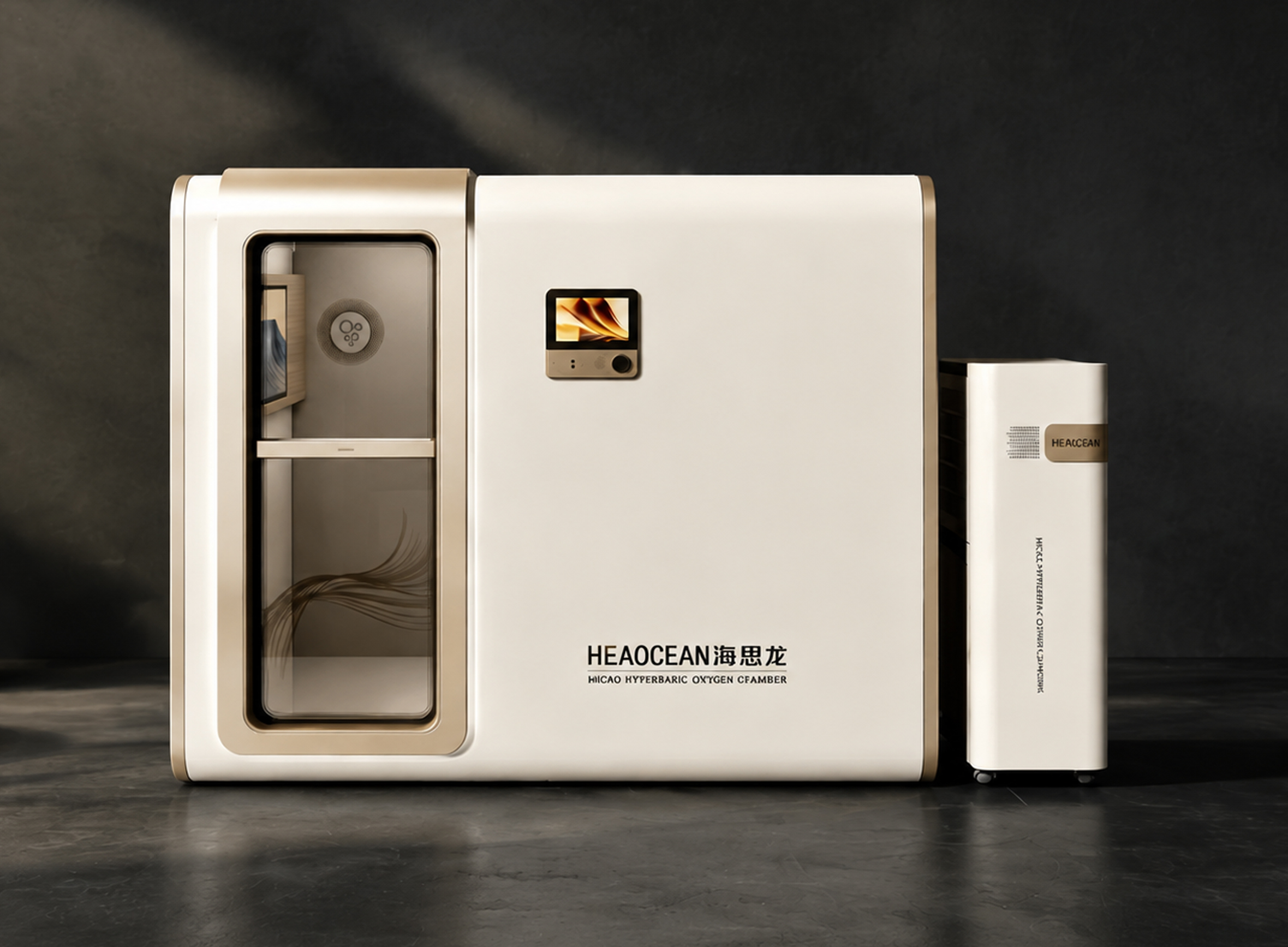

Configulation of Hard Hyperbaric Oxygen Chamber Cabin | |
|---|---|
| Material of Chamber Cabin | Carbon Steel |
| Material of door | PC endurance plate |
| Dimension | L2200*W1800*H1900 |
| Configulation of interior | Electric sofa, Oxygen concentrator, Oxygen Breathing Headset, Wireless intercom, LED lights, Television |
| Oxygen concentration in diffused space | Around 25% |
| Working Pressure | 10-30Kpa Adjustable |
| Basic Function Configuration | Manual safety valve, Automatic safety valve, Push-button pressure relief valve, Touchscreen |
Pressurized Oxygen Concentrator System Configuration | |
|---|---|
| Voltage | 220V/50Hz |
| Rated Power | ≈1100W |
| Rapid inflation flow rate (at 1ata ambient pressure) | ≈220L/min |
| Pressure holding inflation flow rate (at 1ata ambient pressure) | ≈100L/min |
| Oxygen output flow rate (in pure oxygen mode) | ≥15L/min |
| Oxygen Concentration | 90%±3% |
| Noise | About 55db |
